Ground Hog

C-71-5 Earthdrill

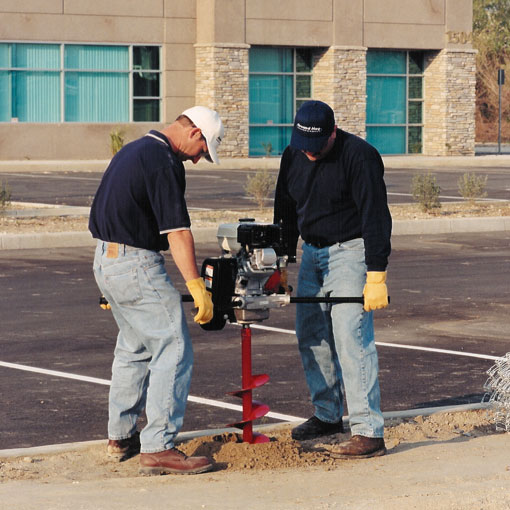

The Ground Hog C-71-5 is two-man earth drill designed to deliver years of reliable service with superior performance. It has been a proven performer for over 40 years. It’s rugged design promotes durability and requires very little maintenance.

The heart of this unit is our time-tested transmission. The transmission is an efficient worm drive design utilizing alloy steel shafts, large tapered roller bearings and our standard 7/8” square auger drive.

Aluminum castings are used throughout the C-71-5's construction to produce a unit that is both strong and lightweight. The C-71-5 uses an air cooled centrifugal clutch and a trigger-type, return-style throttle. Both operator positions are equipped with individual stop switches and tubular steel handlebars.

The C-71-5 is available with 3 engine options; Honda, Briggs & Stratton Intek and Subaru.

Maximum Auger Speed 160 rpm @ 3600 engine rpm (no load)
Maximum Torque 192 ft. lbs. torque (approximate)
Max. Auger Diameter  12 inches (31 cm)
Weight 72 lbs. (33 kg)
Length 40.5 inches (103 cm)
Width 30 inches (76 cm)
Height (Honda) 20.5 inches (52 cm)

– Ground Hog’s time tested transmission

– Low maintenance

– Easily transported

– Rapid Return ON Investment

– 7/8” square auger drive (No shear pins needed)

– Heavy wall steel handlebars

– Aluminum Castings for strength and light weight

– Centrifugal clutch with needle bearings and all metal shoes and drum

– Trigger-type return-style throttle

– Heavy Duty cog-type drive belt

– Will handle the hardest soils

– Handles up to a 12” auger

Three engine options:
Honda, Briggs & Stratton Intek and Subaru

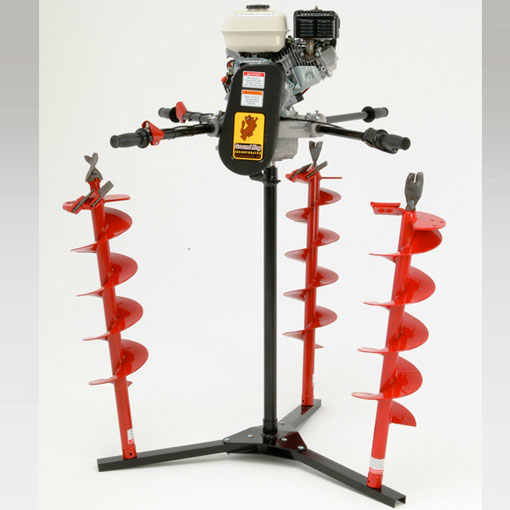

DS3 Display Stand
